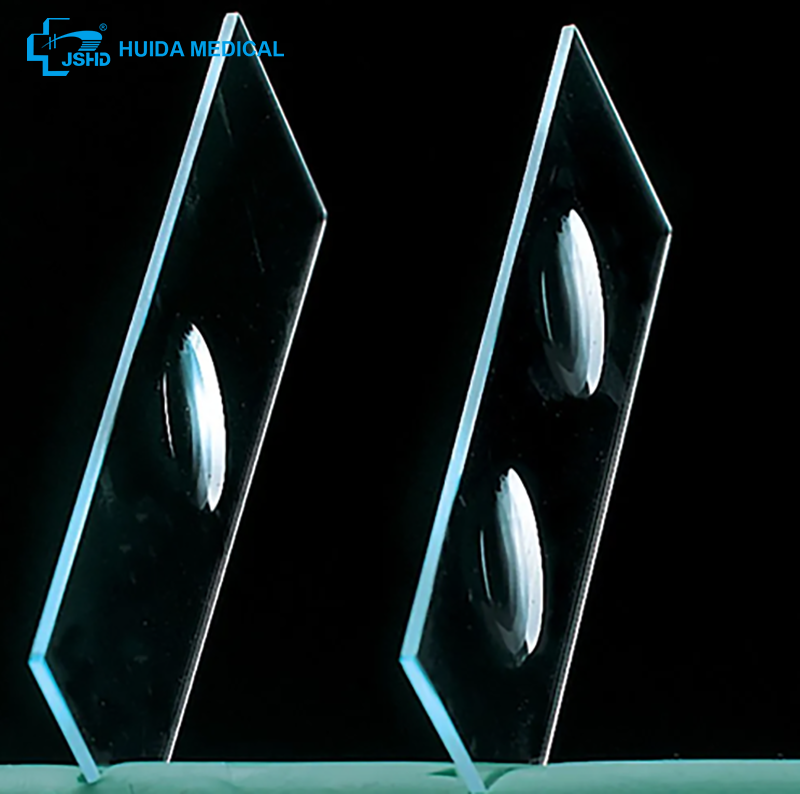

Concave microscope slides, also known as depression slides or cavity slides, are specialized laboratory slides featuring one or more precision-ground circular depressions (wells) on the glass surface. Unlike standard flat microscope slides, these recessed cavities are designed to hold liquid samples, cell suspensions, or small specimens in a controlled volume, preventing spillage and enabling extended observation under a microscope.

Manufactured from high-quality soda lime glass or ultra-clear super white glass, concave microscope slides deliver exceptional optical clarity while maintaining the durability required for daily laboratory use. Each slide undergoes precision grinding to create a smooth, uniform cavity with consistent depth, ensuring reliable and reproducible results across applications. Standard dimensions include 25×75 mm, 1"×3" (25.4×76.2 mm), and 26×76 mm, with a thickness of 1.0–1.2 mm — fully compatible with virtually all standard microscope stages and slide holders.

● Ideal for live cell observation: The cavity depth accommodates thicker samples and allows microorganisms, cell cultures, and aquatic specimens to move naturally in a suspended medium.

● Reduced contamination risk: Samples contained within the depression are less prone to cross-contamination between adjacent slides.

● Dual-sample capability: Double concave slides enable side-by-side comparison of two specimens on a single slide, saving time and reducing material usage.

● Cost-effective and reusable: Durable glass construction offers long-term value compared to disposable alternatives.

● Not suitable for flat mounts: Tissue sections, smears, and other flat preparations require standard plain slides, as the cavity can interfere with even coverslip placement.

● Limited cavity volume: The depression holds only a small volume (typically 0.1–0.5 mL), making it unsuitable for bulk sample analysis.

● Slightly higher cost: Precision grinding adds manufacturing cost compared to standard flat microscope slides.

● Cleaning attention required: The concave well can trap residue if not cleaned thoroughly between uses.

All models feature ground edges for safe handling, available 90° or 45° corners, and come in packaging options of 50, 72, or 100 pieces per box. A complete product specification sheet is available upon request.

Applications Of Concave Microscope Slides

● Clinical Diagnostics: Wet mount examination of sediment from urine, vaginal smears, and other bodily fluids.

● Cell Culture Monitoring: Observing live cells of suspended cultures and assessing their morphology.

● Microbiology: Examination of protozoa, algae, and other microorganisms in their natural liquid medium.

● Educational Laboratories: Teaching the principles of microscopy, observing live specimens, and conducting practical classes

● Research Applications: Analysis of the motility of sperm, crystallization studies, observation of chemical reactions, and microscopic examination of small invertebrates.

● Forensic Analysis: Trace examination of liquid or particulate samples.

Why Choose Jiangsu Huida Medical Instruments

If purchasing concave microscope slides or laboratory slides for clinical, research, or distribution use, Jiangsu Huida Medical Instruments Co., Ltd. is a trusted global manufacturer with two decades of experience. Established in 2003 and located in Yancheng, Jiangsu, China, Huida holds 12,000 m2 of standard manufacturing workshops and has 1,000 m2 of Class 100,000 cleanroom where microscope slides and cover glasses are manufactured.

Quality and regulations are the foundation of Huida's operations. Huida has ISO9001 and ISO13485 certifications, meaning they have top class certifications for their Quality Management and Medical Device Quality Management System for manufacturing of consumables use in the medical field. Products are marked with the CE logo, indicating that they comply with the requirements of the EU councils on health, safety, and the environment. Huida also has FDA registration for selling in the US market. These internationally recognized certifications allow Huida to guarantee the rigorous quality of every batch of concave microscope slides, allowing hospitals, research institutes, and other end users to trust adding Huida's products to their regulated processes.

Huida has over 50 patents and has invested in advanced automation and inspection for manufacturing. Ninety-eight percent of their products are sold to over 100 countries in North America, Europe, Latin America, the Middle East and Southeast Asia. Huida combines scalability, precision, and regulatory preparedness. Whether you need standard soda lime slides for repeated usage or premium high quality super white glass slides, Huida provides consistent high quality products at affordable prices and dependable worldwide supply.

FAQ

Q1: What are the differences between single concave and double concave microscope slides?

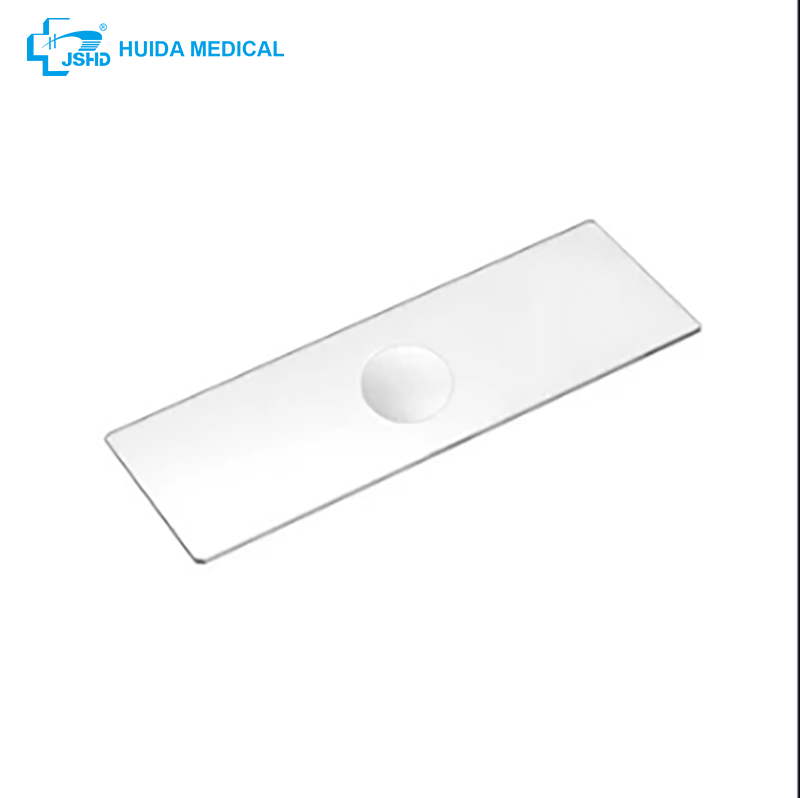

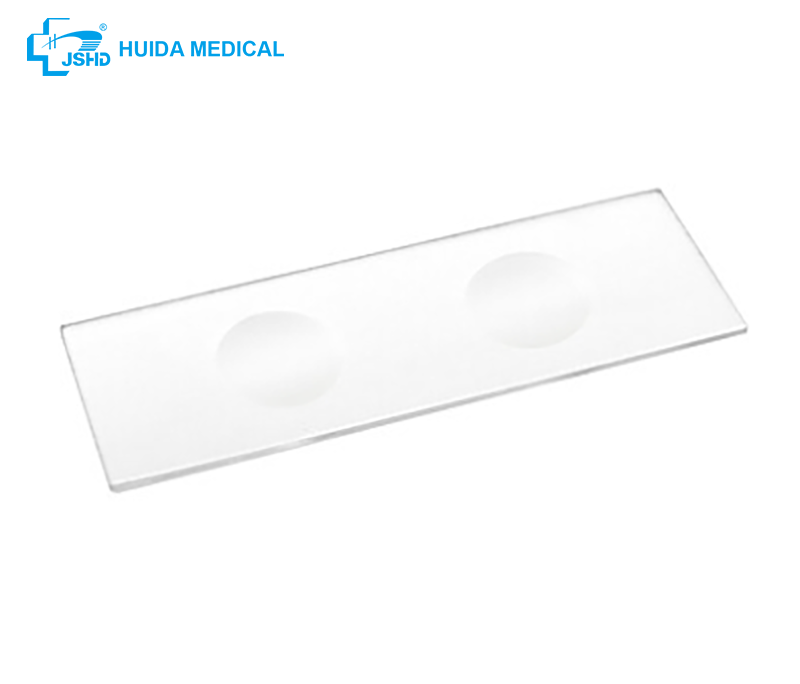

A: The single concave slides (models 7103/7103A) contains one well for individual sampling. The double concave slide (models 7104/7104A) has two wells on the same slide, which allows the comparison of two samples in a single observation, and therefore, is appropriate for control versus sample analysis, teaching, and parallel testing.

Q2: Can concave microscope slides be reused and sterilized?

A: Yes. Huida's concave microscope slides are made from durable soda lime or super white glass. Because of this, they are easily cleaned, sterilized, and reused. With ground edges and precision cavities, they are able to withstand multiple cleaning cycles. For the most critical of clinical applications, always follow your laboratory's validated reprocessing protocols.

Q3: Which material should I choose — soda lime glass or super white glass?

A: Soda lime glass (models 7103/7104) is great for routine laboratory work, educational purposes, and general observation. All of this is true for all bending and flattening microscope slides. Super white glass (models 7103A/7104A), on the other hand, offers exceptionally better light transmission and less green tint, making it the better choice for clinical diagnostics, photomicrography, high resolution imaging, and any application for which optical purity is of utmost importance.
